What is Ground Rail Fiber Laser Cutting Machine

A ground rail fiber laser cutting machine (also called a floor-rail or ground-track laser cutter) is a type of large-format industrial laser system where the guiding rails for the machine are mounted directly on the factory floor, allowing for the processing of extremely large and heavy metal plates .

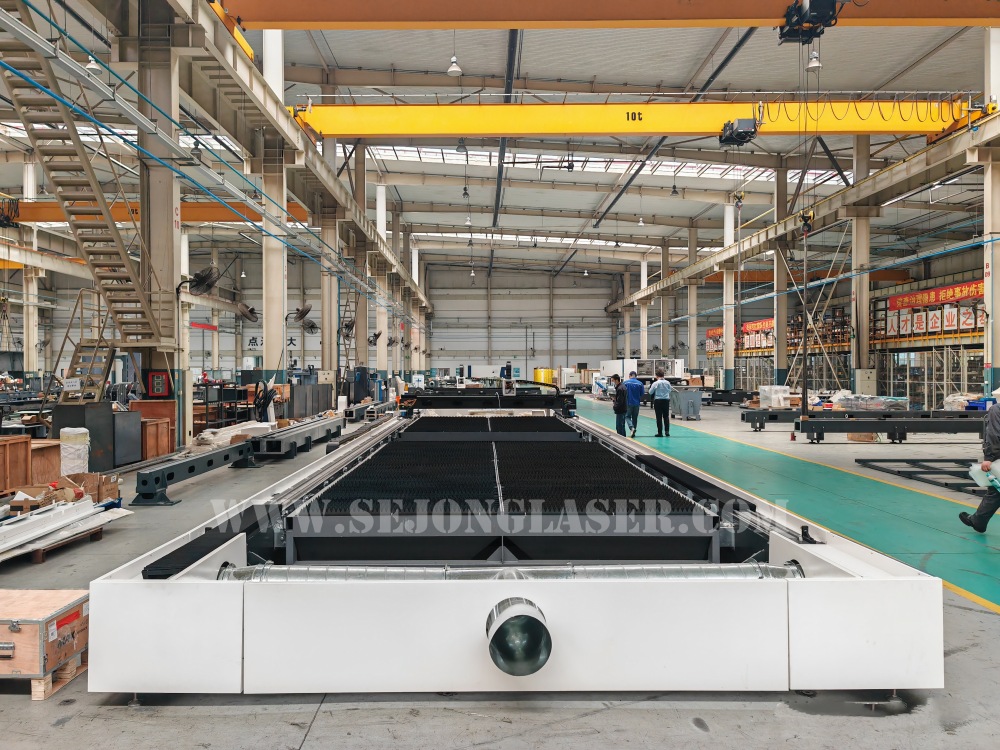

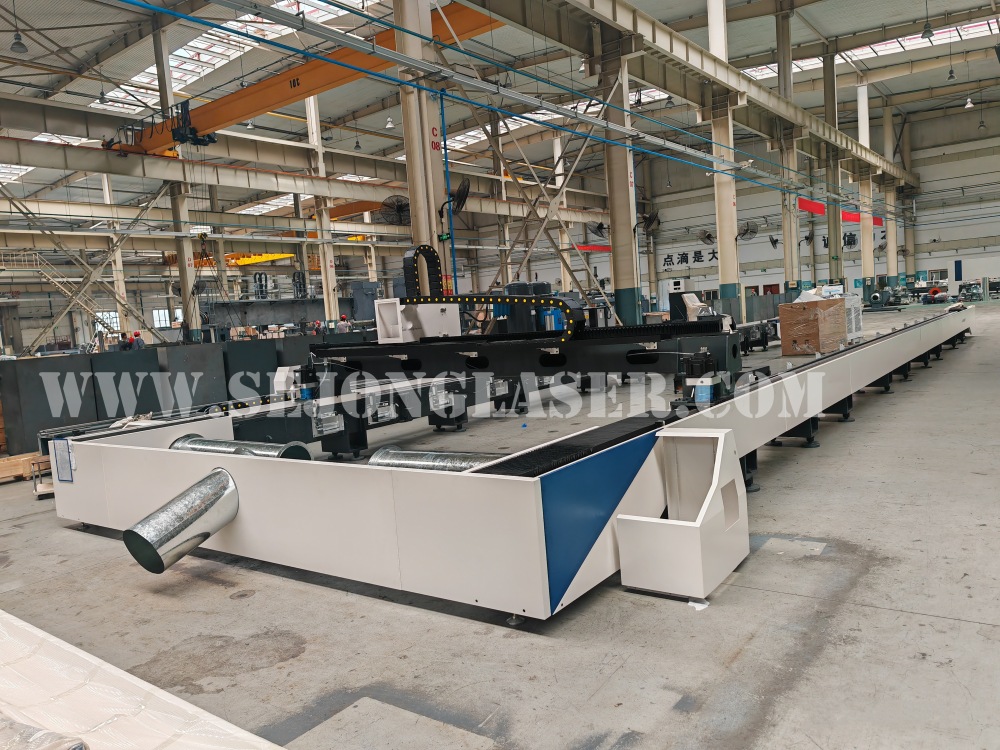

Structure & Design: It features a split-body design. The cutting bed (where the material rests) is separate from the machine frame and rails . The gantry moves along rails fixed to the ground, ensuring that the heat and weight of the material do not cause deformation or vibration in the precision guide rails .

· Modular & Customizable: These machines use a modular design where the bed and rails are built in sections . This allows for easy transportation (in standard containers) and on-site assembly. The cutting length can be customized from 12 meters up to 48 meters or more, with widths typically ranging from 2.5m to 6m .

· Key Applications: They are engineered for heavy industry, specifically for cutting thick plates (up to 50mm+ or ultra-large formats that cannot fit on standard machines .

  · Shipbuilding: Hull plates, frames .

  · Construction Machinery: Excavator arms, crane booms .

  · Steel Structures: Bridges, tunnel supports .

  · Rail Transportation & Mining .

· Advanced Capabilities: Many ground rail systems offer bevel cutting capabilities (up to ±45° or more) to cut weld-ready V, X, or Y shapes in a single pass, eliminating secondary processes . They often feature dual cutting heads to double production efficiency  and segmented dust extraction systems where suction activates only under the cutting head .

 A ground rail fiber laser is a heavy-duty, modular industrial machine built on floor-mounted rails, designed specifically for cutting and beveling massive, thick metal plates for industries like shipbuilding and large-scale construction .
